技术分享 | 企业版监控工具 MEM 初探
2020-07-24发布 1,083浏览

作者:姚远

专注于 Oracle、MySQL 数据库多年,Oracle 10G 和 12C OCM,MySQL 5.6 ,5.7,8.0 OCP。现在鼎甲科技任顾问,为同事和客户提高数据库培训和技术支持服务。

本文来源:原创投稿 *爱可生开源社区出品,原创内容未经授权不得随意使用,转载请联系小编并注明来源。


MySQL 企业版里的 MySQL Enterprise Monitor 工具可用于监控 MySQL 实例和主机性能。现实验如下:



一、安装

1.1 下载

到 https://edelivery.oracle.com/ 网站下软件:

1.2 安装服务端

unzip mysql_monitor.zip  ./mysqlmonitor-8.0.20.1237-linux-x86_64-installer.bin scutech@scutech:~/install$ lltotal 2819608drwxrwxr-x  2 scutech scutech       4096 Jun  1 23:45 ./drwxr-xr-x 30 scutech scutech       4096 Jun  1 23:43 ../-rw-r-xr--  1 scutech scutech        975 Apr 23 05:50 README_en.txt*-rw-r-xr--  1 scutech scutech        975 Apr 23 05:51 READ_ME_ja.txt*-rw-r--r--  1 scutech scutech    6370627 Apr 22 08:14 monitor.a4.pdf-rw-r--r--  1 scutech scutech    6377434 Apr 22 08:13 monitor.pdf-rw-r--r--  1 scutech scutech    5277767 Apr 22 08:12 mysql-monitor-html.tar.gz-rw-r--r--  1 scutech scutech    5302202 Apr 22 08:12 mysql-monitor-html.zip-rw-r--r--  1 scutech scutech 1297382933 Jun  1 23:44 mysql_monitor.zip-rw-r--r--  1 scutech scutech  270694162 Jun  1 23:44 mysql_monitor_agent.zip-rwxrwxr-x  1 scutech scutech  647902090 Apr 22 12:26 mysqlmonitor-8.0.20.1237-linux-x86_64-installer.bin*-rwxrwxr-x  1 scutech scutech  647923832 Apr 22 12:35 mysqlmonitor-8.0.20.1237-linux-x86_64-update-installer.bin* ./mysqlmonitor-8.0.20.1237-linux-x86_64-installer.bin

运行上面的命令后出现以下画面,

选择小型模式,

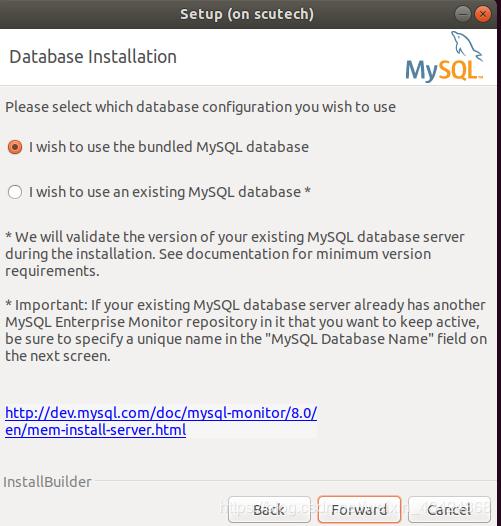

使用安装软件自带的 MySQL 数据库作为 repository 数据库,

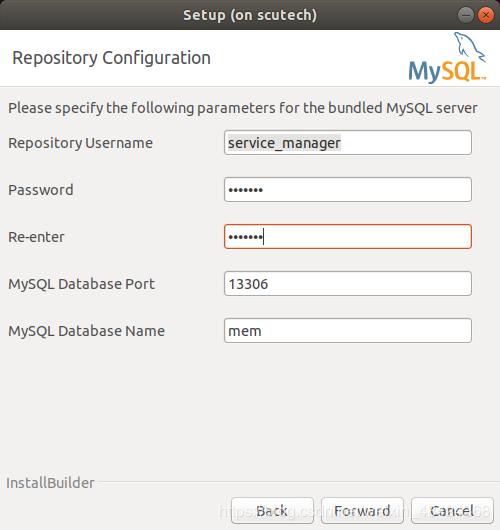

这个用户(service_manager)和密码等相关信息要记录下来,

You have not installed the MySQL Enterprise Monitor as the root user. Therefore it could not be configured to auto-start on reboot. See the Installation section of the MySQL Enterprise Monitor documentation for instructions on how to do this manually.

提示信息中提到的 root 用户是 OS 用户,不是 MySQL 用户!


开始安装,

安装完成提示,

Setup has completed installing the MySQL Enterprise Monitor files on your computerUninstalling the MySQL Enterprise Monitor files can be done by invoking:/home/scutech/mysql/enterprise/monitor/uninstallTo complete the installation, launch the MySQL Enterprise Monitor UI and complete the initial setup. Refer to the readme file for additional information and a list of known issues.Please press next to launch the Monitor UI.

管理脚本,

usage: ./mysqlmonitorctl.sh help       ./mysqlmonitorctl.sh (start|stop|status|restart)       ./mysqlmonitorctl.sh (start|stop|status|restart) mysql       ./mysqlmonitorctl.sh (start|stop|status|restart) tomcathelp       - this screenstart      - start the service(s)stop       - stop  the service(s)restart    - restart or start the service(s)status     - report the status of the service(s)


1.3 安装客户端

客户端分两种,第一种是在客户端安装被监控的机器上(The architecture of a typical MySQL Enterprise Monitor installation),架构见下图:

第二种是不在被监控的机器上安装任何软件(Agentless Architecture),架构见下图:

这两者的对比:

1. 架构上二者区别非常明显,一个有agent,另一个没有 agent;

2. 无 agent 使用方便,配置 IP、用户名、密码等连接方式后即用;

3. 无 agent 不能监控主机上非 MySQL 的信息,有 agent的可以;

4. 从性能的角度考虑,推荐使用有 agent 的方式。

下面是安装一个没有 agent 的客户端的例子:

二、使用

2.1 概览(Overview)

MEM 的概览(Overview)页面。

从 overview 中可以看到被监控对象的大概情况,设置是点击右上角的齿轮。这是有 agent 的监控概览,包括了主机的信息,如:磁盘读写,内存使用等。没有 agent 的监控只有数据库的信息,如下图:

2.2 事件(Event)

超过阀值的事件会在这里列出,阀值的配置在 configuration->advisor 里面,可以关闭的事件点击最右边 action 下面的叉叉符合即可关闭。

2.3 指标(Metrics)

这里有很多衡量被监控对象的指标,这里列举比较常用的几例:

查询分析(Query Analyzer)

查询分析的数据来自 Performance Schema Statement Digests 特性 Performance Schema Statement Digests and Sampling,早于 MySQL 5.6.14 的版本不支持这个特性。

Performance Schema Statement Digests and Sampling:

https://dev.mysql.com/doc/refman/8.0/en/performance-schema-statement-digests.html

被分析的语句的长度不能超过下面的参数,否则截断,

$ mysqladmin variables|grep max_digest_leng|max_digest_length                                        | 1024 || performance_schema_max_digest_length                     | 1024 |

注意:第一个参数 max_digest_length 是 session 级别的,而第二个 performance_schema_max_digest_length 是语句级别的,只对 performance_schema 起作用。

MySQL Enterprise Monitor Agent 每分钟收集一次表 performance_schema.events_statements_summary_by_digest,这个表由下面的参数 statements_digest 决定是否激活(默认激活)。

mysql> SELECT * FROM performance_schema.setup_consumers WHERE name = 'statements_digest';+-------------------+---------+| NAME              | ENABLED |+-------------------+---------+|+-------------------+---------+1 row in set (0.00 sec)

监控的样图如下:

在每个 SQL statement 后面有细节选项,点击进入可看这个 SQL statement 的细节:

当看这个 SQL statement 的例子的时候,可能因为配置的原因没有显示,这时会有下面的提示:

设置正确后会出现下面的画面:

参考:
Performance Schema Statement Digests and Sampling
https://dev.mysql.com/doc/refman/8.0/en/performance-schema-statement-digests.html
